Description

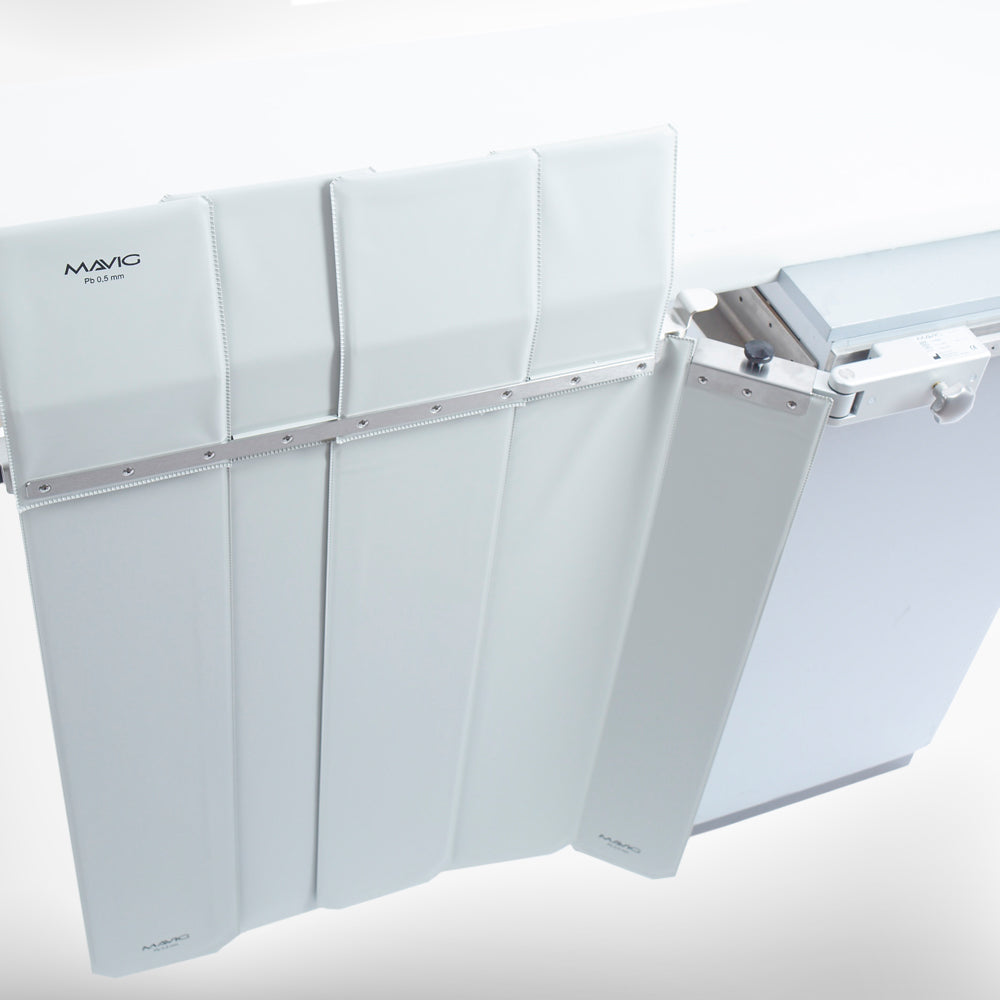

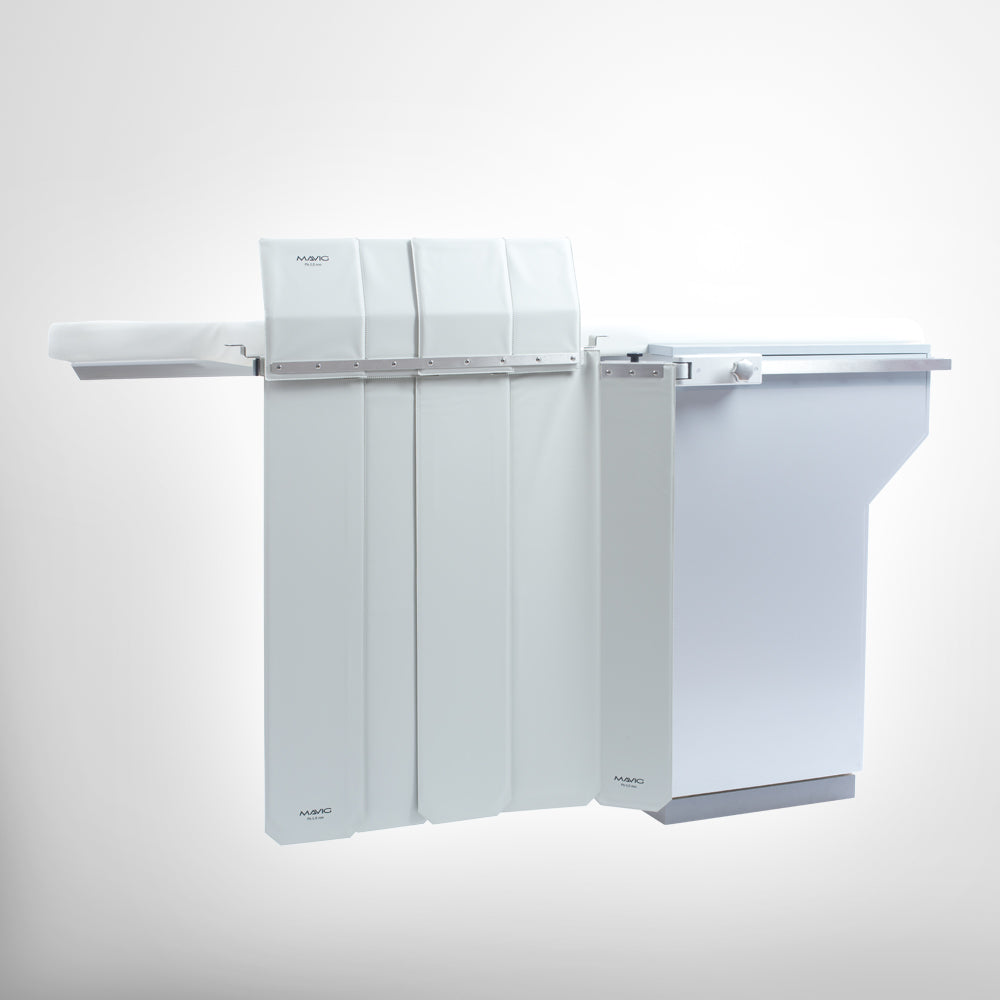

xThe UT69 offers maximum protection, thanks to the intermediate double articulated joint and the additional lateral lead panel (removeable). The upper shield can be removed quickly in case of emergency or for comfortable patient positioning.
- Lead equivalent of Pb 0.50 mm
- Solid construction and rounded edges reduce the risk of injuries
- Overlapping, flexible radiation protective panels with PVC covering
- Two practical wall mounts included (model dependend)
Largest Possible Flexibility – Maximum Protection
- Total weight: UT6902 = 27.9 kg ; UT6904 = 26.9 kg
- Height without upper shield: 900 mm
- Width: 645 mm (main section, 4 overlapping panels), 170 mm (additional panel)
- Total width of all lower body protection panels (below the table): max. 800 mm (overlapping, adjustment angle)

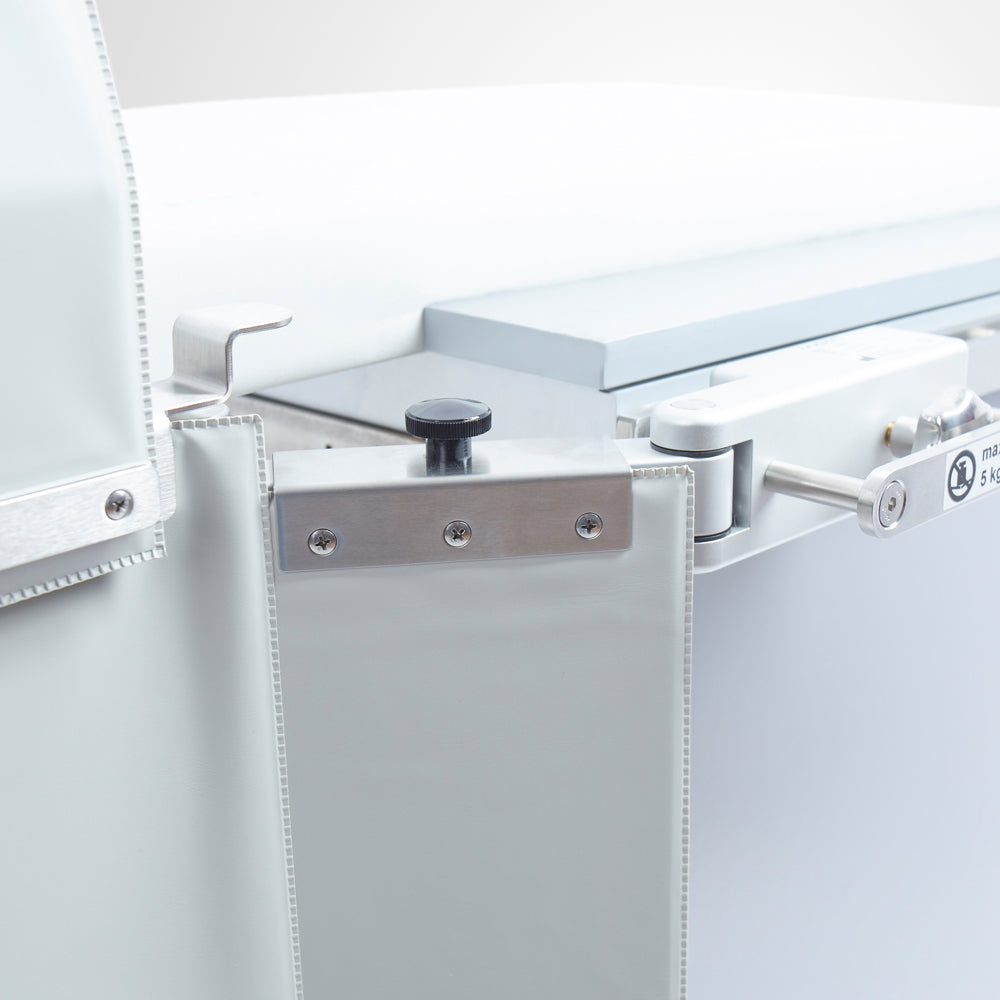

- Universal adapter: suitable for table rails ranging from 7 x 25 mm to 10 x 30 mm
- Two separate upper shields (depending on model), resp. 170/250 mm in height; width: 600 mm
