Description

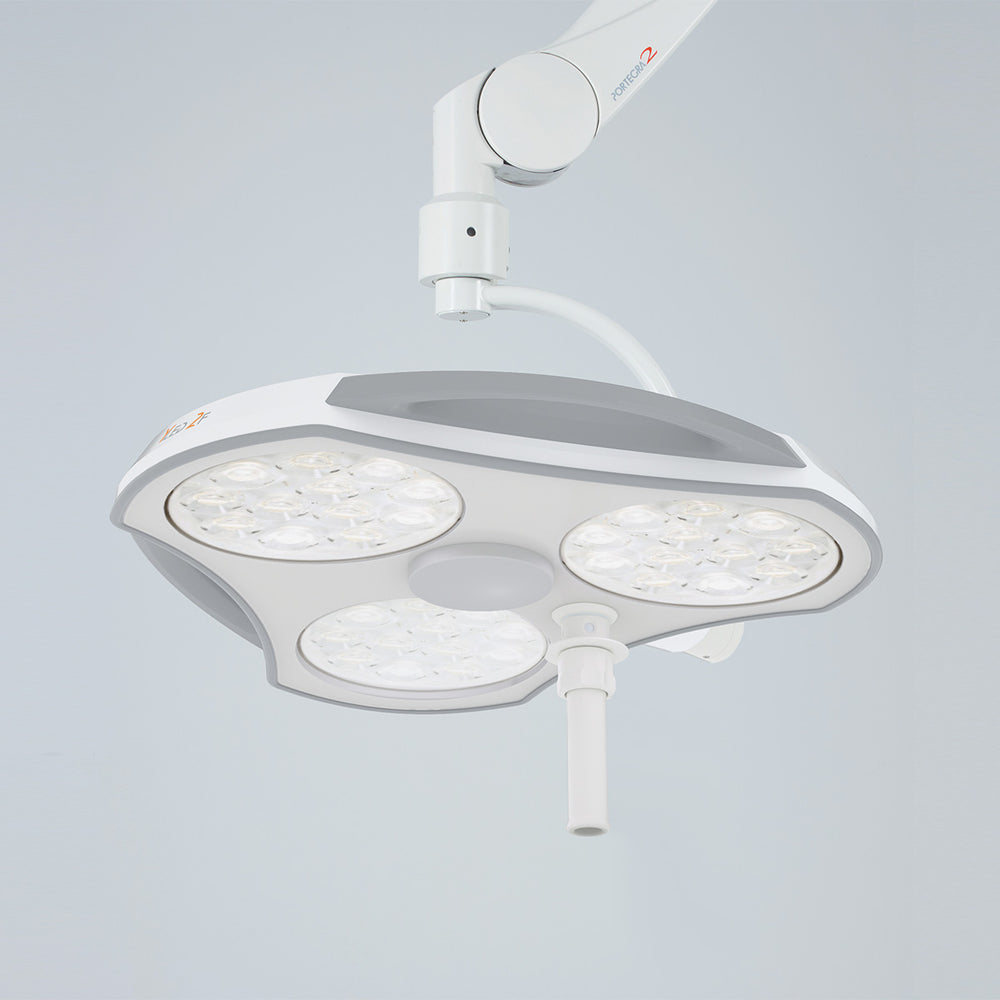

xPartial cardanic surgical light
with endoscopy function
Optimum illumination of the wound area is guaranteed by the 36 powerful LED modules (with up to 130,000 lux). This YLED-2F surgical light combines outstanding luminosity with a sophisticated design.
The best ergonomic conditions for medical applications are also made possible thanks to the partial cardanic suspension and the asymmetrical handle position.
- User-friendly control panel
- 5-step light intensity control
- Electronic focusing
- Sterilizable handle with adjustment ring for focusing
- Endo mode with 5 % light intensity
- Optimum flow properties (laminar flow)
- Free 360° rotation
- Standard camera preparation (camera optional)
Precise illumination for surgical procedures
The YLED-2F impresses with its compact design and a well thought-out and intuitive control panel. The sterilizable handle on the operating light ensures hygienic and safe handling and meets the highest hygiene requirements in everyday clinical practice.
High Ra and R9 values ensure realistic color reproduction during surgical procedures and the faceted lens system guarantees homogeneity and minimal shadowing in the light field.
The delivery also includes an electrified pre-set Portegra®2 suspension arm (extension arm 750 mm / 950 mm, or for HCA systems with spring arm only) and an external power supply unit.
| Model | YLED-2F |
| Central light intensity (at 1 m distance) | 130,000 lx |
| Color rendering index Ra / R9 at 4500 Kelvin (CRI) | 96 |
| Focusable light field size (at a distance of 1 m) | 18 – 23 cm |
| Electronic brightness control | 28 – 100 % (incl. 5 % endoscopy light function) |
| Temperature increase in head area | 0,5 K |
| Low power consumption (total) / number of LEDs | 30 VA / 36 LEDs (with mains voltage 100 – 240 VAC, 50 – 60 Hz) |
| Power consumption (with HD camera system) | 55 max |
| Long service life of light sources | ≥ 60,000 h |
| Height adjustment (on Portegra®2 spring arm) | 117 cm |
| Weight of YLED-2F incl. handle | 8.6 kg (+ 1 kg with camera option) |
| Protection class | IP42 |
| Medical Product – (EU) 2017/745 / Approval | in accordance with MDR Regulation / CE, NRTL |
