Description

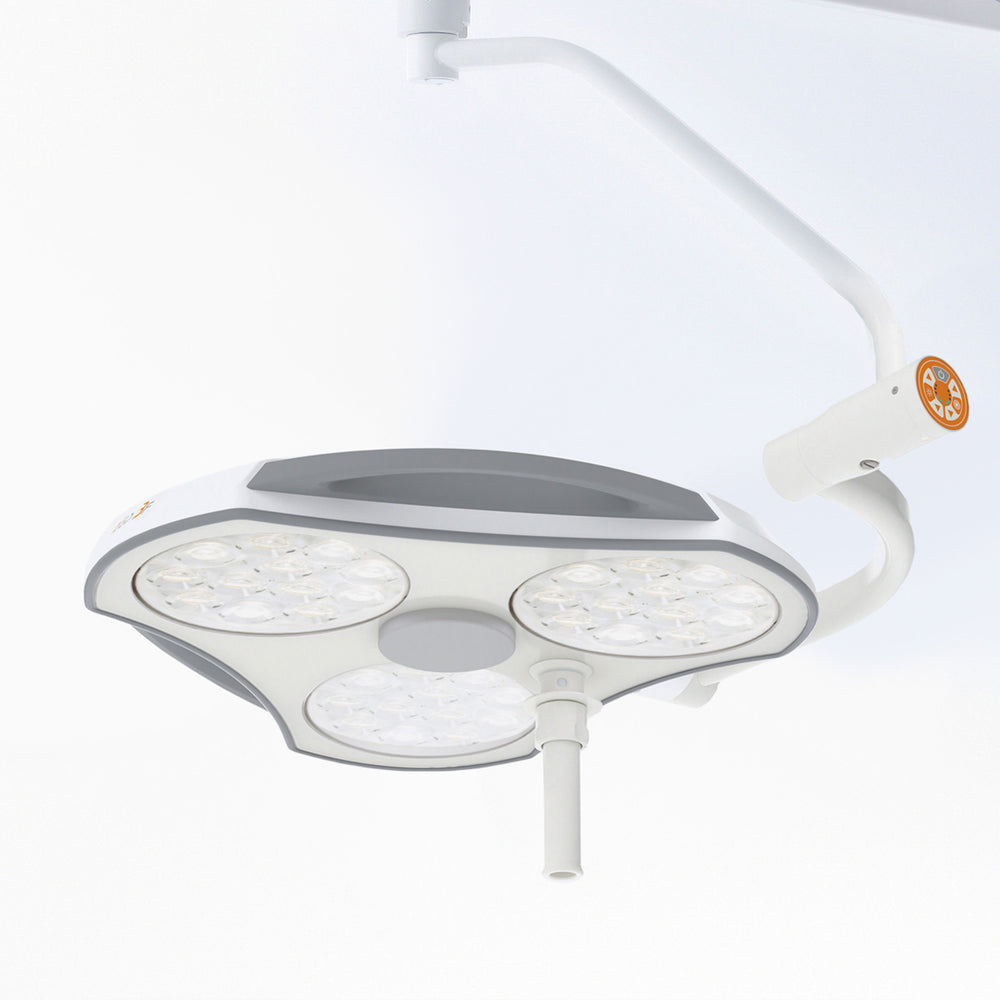

xFully cardanic surgical light
with endoscopy function
The YLED-3F is one of the most powerful surgical lights with fully cardanic suspension – maximum mobility, full control.
36 high-performance LEDs provide an outstanding illuminance of 160,000 lux in total – more light, increased precision.
- Free 360° rotation
- User-friendly control panel
- 5-level dimming
- Electronic focusing
- Endo mode with 5 % light intensity
- Streamlined (laminar flow)
- Sterilizable handle with focus adjustment
- Standard camera preparation (camera optional)
Maximum mobility meets modern design
The fully cardanic suspension offers maximum flexibility in positioning. Excellent color reproduction values make the finest colour nuances in the tissue precisely visible. The ergonomically positioned handle allows the light field to be focused by turning the adjustment ring.
A faceted lens system ensures uniform light distribution and shadow reduction in the field of view.
The sterilizable handle of the YLED-3F meets the highest hygienic requirements in everyday medical practice.
The delivery also includes an electrified pre-set Portegra®2 suspension arm (extension arm 750 mm / 950 mm, or for HCA systems with spring arm only) and an external power supply unit.
| Model | YLED-3F |
| Central light intensity (at 1 m distance) | 160,000 lx |
| Color rendering index Ra / R9 at 4500 Kelvin (CRI) | 96 |
| Focusable light field size (at a distance of 1 m) | 18 – 23 cm |
| Electronic brightness control | 28 – 100 % (incl. 5 % endoscopy light function) |
| Temperature increase in head area | 0,5 K |
| Low power consumption (total) / number of LEDs | 35 VA / 36 LED (max. 55 VA incl. camera, mains voltage 100 – 240 VAC, 50 – 60 Hz) |
| Power consumption (with HD camera system) | 55 max |
| Long service life of light sources | ≥ 60,000 h |
| Height adjustment (on Portegra®2 spring arm) | 117 cm |
| Weight of YLED-2F incl. handle | 11,5 kg (+ 1 kg with camera option) |
| Protection class | IP42 |
| Medical Product – (EU) 2017/745 / Approval |
in accordance with MDR Regulation / CE, NRTL |
